ASTM A269 Stainless Steel Pipe/Tube
ASTM A269 Stainless Steel Pipe/Tube
ASTM A269 Stainless Steel Pipe/Tube

ASTM A269 Stainless Steel Pipe/Tube

Wuxi Xinshanhu Steel Co., Ltd. has gained a very good reputation in the market as a reliable supplier. We provide one-stop solution to customers from more than 100 countries from Asia, Europe, America, Australia, Africa, etc. As a professional manufacturer, You are welcome to contact us!


Send Us Your Quotation By Email Can Get A Discount, Contact Us To Get Price List!

  • Tech Specs
  • Pictures
  • Certificates
  • Company Information
Tech Specs

Specification Of ASTM A269 Stainless Steel Pipe/Tube

Parameter

Details

Outer Diameter (OD)

6.25mm - 203mm

Wall Thickness (WT)

0.5mm - 12mm

Length

5-12m or as per customer requirement

Application

Small diameter stainless steel tube for super heater, heat exchanger, condensers of petroleum, power plant, and mining industries

Supplementary Technology

Plain or threaded with socket or beveled with plastic caps, hydraulic testing, eddy current, Infrared test

Surface

Annealed & pickled, bright annealing, polished

Delivery State

Hot Rolled, Cold Drawn

Steel Grade

TP304/304L, TP316/316L


ASTM A269 Chemical Composition


Steel Grade

C (%, max)


Si (%, max)


Mn (%, max)


Cr (%, range)


Ni (%, range)


Mo (%, range)


S (%, max)


P (%, max)


TP304

0.08

0.75

2

18 - 20

8 - 11

-

0.03

0.04

TP304L

0.035

0.75
2
18 - 20
8 - 13
-
0.03
0.04

TP316

0.08

0.75
2

16 - 18

11 - 14

2 - 3

0.03
0.04

TP316L

0.035

0.75
2

16 - 18

10 - 15

2 - 3
0.03
0.04

TP321

0.08

0.75
2
17 - 20

9 - 13

-
0.03
0.04

Pictures

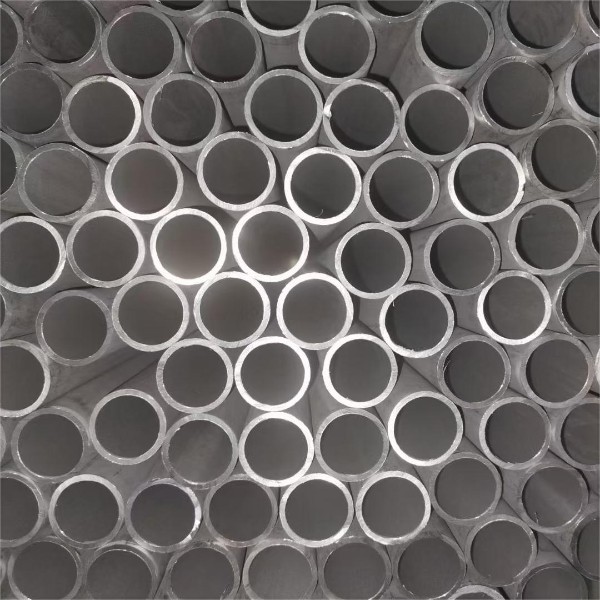

Images Of ASTM A269 Stainless Steel Pipe/Tube

Certificates

Certificate Qualifications Owned By The Company


Company Information

Wuxi Xinshanhu Steel Co., Ltd. is a Chinese stainless steel manufacturer existing for eleven years with rich production experience, well-trained workers and excellent engineers, Our factory has a mature production system with several steel production lines, including a high-precise acid continuous rolling line, a cold plate production line; a high-precise metal sheet flattening line; a high-precise metal sheet rewinding and tension straightening line; a metal sheet cutting and distribution line; High precision sheet rewinding and tension straightening lines; sheet cutting and assembly lines. Our products include various stainless steel plates, stainless steel tubes, stainless steel bars, stainless steel strips, stainless steel coils, stainless steel angles, stainless steel flat bars, stainless steel profiles, stainless steel wires, etc.




Where is your factory?

Our company’s processing center is located in Wuxi, Jiangsu, China. It is well equipped with kinds of machines, such as laser cutting machine, mirror polishing machine and so on. We can provide a wide range of personalized services according to the customers’needs.

What are your company's main products?

Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

How do you control quality?

Mill Test Certification is supplied with shipment, Third Party Inspection is available.

What are the advantages of your company?

We have many professionals, technical personnel, more competitive prices, and best after-sales service than other stainless steel companies.

How many countries have you already exported to?

Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan, India, etc.

Do you provide samples? is it free or extra?
 Yes, we could offer the sample for free charge but do not pay the cost of freight.
Pictures

Images Of ASTM A269 Stainless Steel Pipe/Tube

Certificates

Certificate Qualifications Owned By The Company


Company Information

Wuxi Xinshanhu Steel Co., Ltd. is a Chinese stainless steel manufacturer existing for eleven years with rich production experience, well-trained workers and excellent engineers, Our factory has a mature production system with several steel production lines, including a high-precise acid continuous rolling line, a cold plate production line; a high-precise metal sheet flattening line; a high-precise metal sheet rewinding and tension straightening line; a metal sheet cutting and distribution line; High precision sheet rewinding and tension straightening lines; sheet cutting and assembly lines. Our products include various stainless steel plates, stainless steel tubes, stainless steel bars, stainless steel strips, stainless steel coils, stainless steel angles, stainless steel flat bars, stainless steel profiles, stainless steel wires, etc.




Company FAQ
Where is your factory?

Our company’s processing center is located in Wuxi, Jiangsu, China. It is well equipped with kinds of machines, such as laser cutting machine, mirror polishing machine and so on. We can provide a wide range of personalized services according to the customers’needs.

What are your company's main products?

Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

How do you control quality?

Mill Test Certification is supplied with shipment, Third Party Inspection is available.

What are the advantages of your company?

We have many professionals, technical personnel, more competitive prices, and best after-sales service than other stainless steel companies.

How many countries have you already exported to?

Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan, India, etc.

Do you provide samples? is it free or extra?
 Yes, we could offer the sample for free charge but do not pay the cost of freight.
